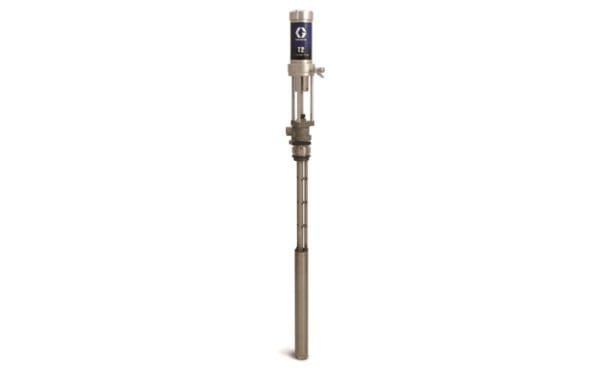

Graco 295616 Supply Pump with Drum Riser Tube (T2 2.25:1 Ratio Piston Pump)
Engineered for more output, better performance and great value
• Quick-disconnect feature for simple drum removal
• Easily handle higher viscosity materials – even in cold conditions
• High output pumps – get the job done faster
• Provide consistent feed pressures and fl ow rates for dependable results
• Designed for easy maneuverability and handling
• O-ring seal design is more durable and lasts longer – more spraying uptime and less time on maintenance
• Affordable options – meeting your business and performance needs
Ratio: 2.25:1
Maximum output – continuous: 5.0 gpm (9.5lpm)
Maximum output – intermittent: 7.5 gpm (15 lpm)
Maximum input air pressure: 180 psi (12 bar 1.2 MPa)
Maximum output air pressure: 405 psi (28 bar 2.8 MPa)
Maximum ambient temperature: 120º F (50º C)
Maximum fluid temperature: 190º F (88º C)
Weight: 21 lb (9.5 kg)
Dimensions: 54 in (137 cm) lenght; 3.5 in (89 cm) diameter (cap)
Manufacturer Part Number: 295616
