Spray Foam Insulation Systems


Polyurethane foam is a spray applied cellular plastic that is a highly effective insulation that can provide an air barrier and moisture barrier for roofs, attics, crawlspaces, walls, and basements. Spray foam is a two component system comprised of an “A” side consisting of Isocyanate and a “B” side which is a blend of polyol resins, blowing agents, and catalysts. When these two components are combined a chemical reaction takes place producing foam. Typical systems are 1:1 in ratio.

When the two components are processed for application they are metered to the correct ratio through a machine called a proportioner. The two components are increased in pressure, typically to 1200 PSI and heated for application, usually to 110 to 120 degrees F. The material is sent through heated hose and are kept separate until they mix in the spray gun. The mixed foam then expands on the surface it is sprayed on, sealing cracks, gaps, and voids. Both open and closed cell foam create a sealed environment and are great air barriers. Open cell foam is a very effective sound barrier and closed cell foam is used when a moisture barrier is needed. Closed cell foam will also strengthen structures.

Package Systems

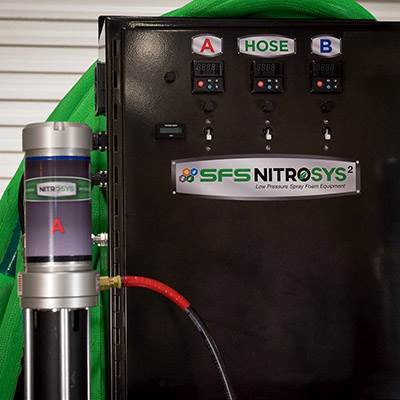

Entry-level low pressure spray foam system designed for residential contractors and industry beginners. This innovative patent pending system utilizes high pressure foam formulations in a low pressure system. This system provides contractors and installers ease of use and safer working conditions.

Choose Your Nitrosys Plus System Here

Portable System


ProPAK Portable

Designed for professional and commercial contractors as a portable turnkey solution for hard to reach places. ProPak Portable is a shore powered spray high pressure mobile rig. Graco Reactor 2 that provides up to 30 lbs/min output for fast and reliable spray applications.

Learn More About ProPAK Portable System Here

Mobile System

ProPAK 300 Mobile Spray Foam Rigs and Equipment

This turnkey package includes a Graco Reactor 2 E-30 that allows you up to 30 pounds per minute of material output. This rig is great for residential and commercial spray foam insulators.The ProPak 300 can be placed in a trailer or box truck with a Diesel Generator, Rolair compressor and Graco Fusion AP spray gun.

Choose Your ProPAK 300 System Here
